Access points – how they work in your network

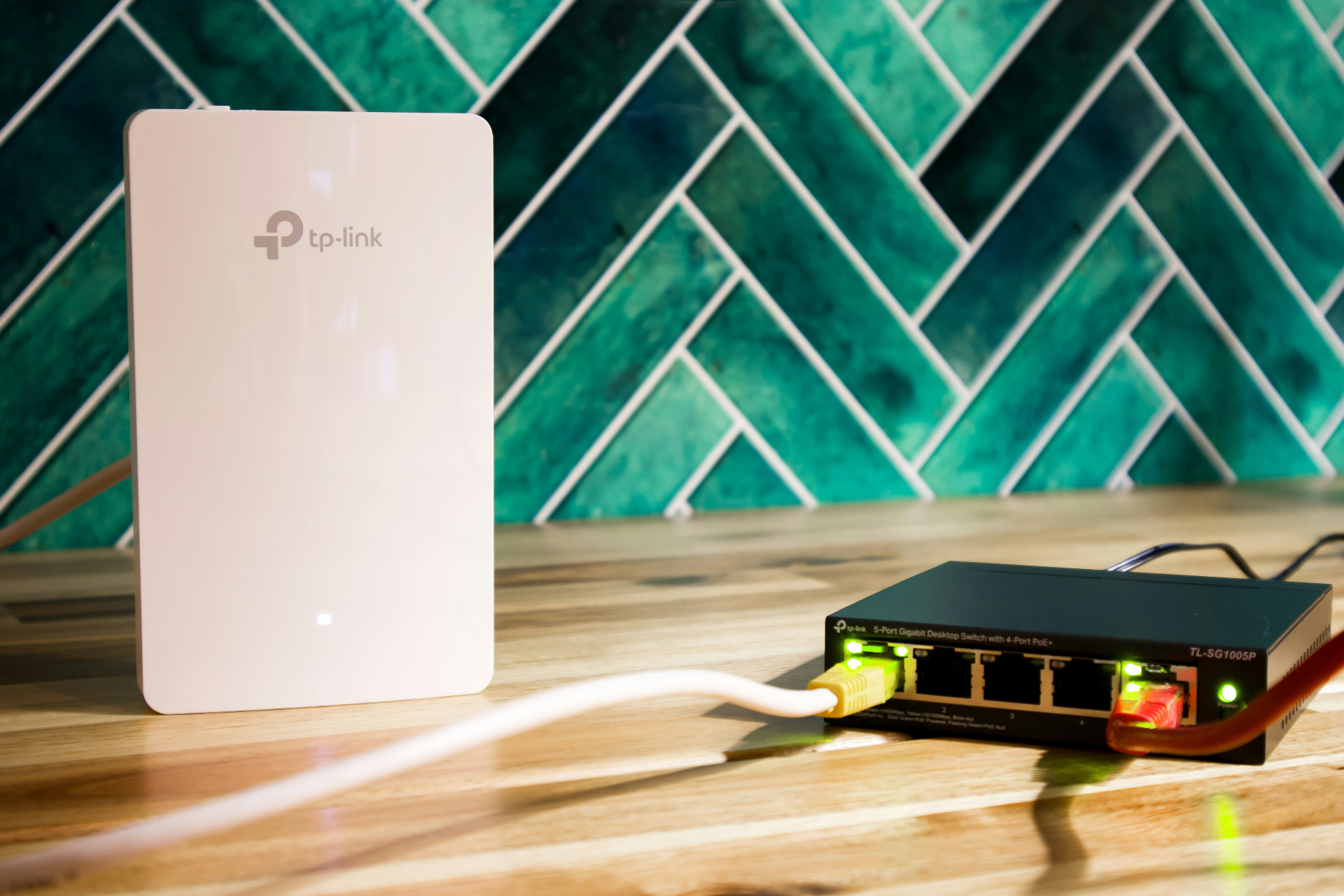

An access point can be the solution if you experience dead zones or an unstable wireless signal in your home. It acts as a link that extends and strengthens your existing network, giving you better coverage and higher speed – no matter where you are in your home.
In this article, you’ll get an overview of how access points work, what types exist, and what you should consider before choosing the model that best suits your needs.
The article presents a selection of access points ranging from simple models to more advanced solutions for both private users and small businesses. The aim is to provide an informative overview of features, specifications, and price levels, making it easier for you to assess which type of access point matches your network needs. The information is based on publicly available product descriptions from manufacturers and retailers and summarised to provide a clear basis for comparison.
Factors to consider when buying an access point
When choosing an access point, there are several technical and practical aspects you should take into account. Here we go through the most important factors.
1. Coverage and signal strength
The primary purpose of an access point is to improve coverage. Consider how large an area you want to cover and whether the signal needs to pass through several walls or floors. More powerful models with multiple antennas typically provide better range.
2. Speed and standards
Access points support different Wi-Fi standards, which determine speed and stability. The latest standards, such as Wi-Fi 6 and Wi-Fi 6E, offer higher speeds, lower latency, and better handling of many devices at the same time. If you have many smart devices, it may be worth choosing a newer standard.
3. Power supply and installation
Some access points are powered via a standard power plug, while others use Power over Ethernet (PoE), where power and data are transmitted through the same network cable. PoE can be practical if you want to mount the device on the ceiling or in a place without a power socket.
4. Security and management
A good access point should support modern security protocols such as WPA3. Also consider how you want to manage the network – some models have user-friendly apps, while others require access via a web interface. For businesses, centralised management can be an advantage.
5. Price and features
The price depends on performance, features, and brand. Simple models cover basic needs in the home, while more expensive solutions offer advanced features such as mesh networks, guest access, and traffic prioritisation (QoS). Choose based on how complex your network is and how much control you want.
Products in focus
The Ubiquiti UniFi UAP-AC-HD-5 is a set of five wireless access points developed to deliver fast and stable Wi-Fi coverage in larger network environments. Each unit supports dual-band operation with 2.4 GHz and 5 GHz frequency bands, providing flexibility and high total bandwidth.
The access point is based on the 802.11ac Wave 2 standard and can handle over 500 simultaneous clients, making it suitable for offices, educational institutions, and public areas with many users. The internal 4T4R MIMO technology contributes to efficient data transfer and a stable connection.
The devices can be centrally managed via Ubiquiti’s UniFi Controller software, which allows monitoring, configuration, and scaling of the network. The design is discreet and can be mounted on both walls and ceilings, making installation flexible.
The set comes with mounting brackets but without PoE adapters, as the devices support PoE+ power supply via network cable. The low power consumption and wide operating temperature make them suitable for continuous operation in various environments.
- Dual-band performance: Supports both 2.4 GHz (up to 800 Mbps) and 5 GHz (up to 1.733 Mbps).
- High capacity: Can handle more than 500 simultaneous clients per unit.
- Advanced Wi-Fi 5 technology: 802.11ac Wave 2 with 4T4R MIMO for efficient data transfer.
- Central management: Compatible with UniFi Controller for easy setup and management.
- Flexible mounting: Can be installed on wall or ceiling and comes with mounting brackets.
Pros and cons
- High performance and stability in environments with many users
- Supports modern Wi-Fi 5 (802.11ac Wave 2)
- Centralised management via UniFi Controller
- Flexible mounting and discreet design
- PoE+ power supply via network cable
- PoE adapters are not included and must be purchased separately
- Requires UniFi Controller for full functionality
- The product is discontinued and may be difficult to obtain
Pros and cons
Pros
- High performance and stability in environments with many users
- Supports modern Wi-Fi 5 (802.11ac Wave 2)
- Centralised management via UniFi Controller
- Flexible mounting and discreet design
- PoE+ power supply via network cable
Cons
- PoE adapters are not included and must be purchased separately
- Requires UniFi Controller for full functionality
- The product is discontinued and may be difficult to obtain
Pros
- High performance and stability in environments with many users
- Supports modern Wi-Fi 5 (802.11ac Wave 2)
- Centralised management via UniFi Controller
- Flexible mounting and discreet design
- PoE+ power supply via network cable
Cons
- PoE adapters are not included and must be purchased separately
- Requires UniFi Controller for full functionality
- The product is discontinued and may be difficult to obtain
Specifications
- Manufacturer: Ubiquiti
- Model: UAP-AC-HD-5
- EAN: 0810354026133
- Item number: 2581639
- Quantity per pack: 5 (specifications apply to a single unit)
- Wireless standard: IEEE 802.11a/b/g/n/ac, 802.11ac Wave 2
- Frequency band: 2.4 GHz and 5 GHz
- Maximum data rate: 1.733 Gbps
- Capacity: Over 500 simultaneous clients, 1–4 BSSIDs per radio
- Antenna: Internal, 4 antennas
- Interface: 2 x 1000Base-T (PoE+) RJ-45
- PoE support: PoE+ (802.3at)
- Power consumption: 17 W
- Dimensions: 22 × 22 × 4.81 cm
- Weight: 700 g
- Operating temperature: -10 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Compliance standards: IC, FCC, IEEE 802.1Q, 802.3af, 802.3at
Ubiquiti Rocket M365 is a wireless device developed for outdoor use, where stability and range are crucial. It supports the AirMax protocol, which enables efficient data transfer in both point-to-point and point-to-multipoint configurations.
The device is powered by an Atheros MIPS 24KC processor at 550 MHz and has 64 MB RAM as well as 8 MB flash memory, providing stable and fast operation. It is equipped with two RP-SMA antenna ports and a 100Base-TX RJ-45 port for network connection.
The Rocket M365 is designed to be pole-mounted and built to withstand outdoor conditions. It supports Power over Ethernet (PoE), which simplifies installation by combining power and data in one cable.
With a power consumption of 6.5 watts and a frequency band of 3.65 GHz, the device is suitable for professional wireless networks where reliable connection and flexible setup are required.
- Outdoor design: Robust construction for installation in demanding environments.
- AirMax protocol: Optimised for efficient wireless communication in professional networks.
- PoE support: Simplifies installation by combining power and data in one cable.
- Flexible mounting: Can be pole-mounted for optimal placement and signal strength.
- Low power consumption: Efficient operation with only 6.5 watts of consumption.
Pros and cons
- Robust construction for outdoor use
- Supports the AirMax protocol for high performance
- PoE makes installation easier
- Flexible mounting and compact design
- Suitable for both point-to-point and point-to-multipoint setups
- Limited to the 3.65 GHz frequency band
- Requires compatible AirMax components for full functionality
- The product is discontinued and may be difficult to obtain
Pros and cons
Pros
- Robust construction for outdoor use
- Supports the AirMax protocol for high performance
- PoE makes installation easier
- Flexible mounting and compact design
- Suitable for both point-to-point and point-to-multipoint setups
Cons
- Limited to the 3.65 GHz frequency band
- Requires compatible AirMax components for full functionality
- The product is discontinued and may be difficult to obtain
Pros
- Robust construction for outdoor use
- Supports the AirMax protocol for high performance
- PoE makes installation easier
- Flexible mounting and compact design
- Suitable for both point-to-point and point-to-multipoint setups
Cons
- Limited to the 3.65 GHz frequency band
- Requires compatible AirMax components for full functionality
- The product is discontinued and may be difficult to obtain
Specifications
- Manufacturer: Ubiquiti
- Model: ROCKETM365
- Item number: 2666928
- EAN: 4250605598143
- Device type: Wireless connection (external, outdoor)
- Processor: 1 x Atheros MIPS 24KC 550 MHz
- RAM: 64 MB SDRAM
- Flash memory: 8 MB
- Data connection protocol: AirMax
- Frequency band: 3.65 GHz
- Power Over Ethernet (PoE): Supported
- Power consumption: 6.5 watts
- Interface: 2 x antenna (RP-SMA), 1 x 100Base-TX (RJ-45)
- Features: MIMO technology, QoS, pole mounting
- Dimensions (W x D x H): 16 × 8 × 3 cm
- Weight: 500 g
- Operating system: AirOS
Ubiquiti UniFi UAP-AC-SHD is an enterprise access point designed to deliver stable and fast wireless connectivity in demanding environments. The device supports both 2.4 GHz and 5 GHz frequency bands and can achieve speeds of up to 800 Mbps and 1733 Mbps, respectively.
The access point is based on Wi-Fi 5 (802.11ac Wave 2) and uses 4T4R MIMO technology to optimise signal strength and coverage. It can handle more than 500 simultaneous clients and supports features such as VLAN, QoS, and Wi-Fi Multimedia (WMM).
The device has built-in antennas and comes with mounting brackets, making it suitable for both wall and ceiling mounting. It is powered via PoE+ and has two Gigabit Ethernet ports, providing flexibility in installation.
With features such as Wireless Intrusion Prevention System (WIPS), airView, and Airtime Fairness, the UAP-AC-SHD is designed to deliver both high performance and advanced network security in professional environments.
- Dual-band performance: Supports both 2.4 GHz and 5 GHz with up to 1733 Mbps.
- Wi-Fi 5 (802.11ac Wave 2): Provides high capacity and efficient data handling.
- Advanced security: Includes WIPS and supports multiple encryption methods.
- Flexible installation: Can be mounted on wall or ceiling and powered via PoE+.
- High capacity: Supports over 500 simultaneous clients.
Pros and cons
- High wireless performance with dual-band technology
- Supports many simultaneous users
- Advanced security features such as WIPS and VLAN
- PoE+ power supply for easy installation
- Compatible with UniFi Controller for central management
- Requires UniFi Controller software for full functionality
- Not suitable for small home networks as it is aimed at enterprise use
Pros and cons
Pros
- High wireless performance with dual-band technology
- Supports many simultaneous users
- Advanced security features such as WIPS and VLAN
- PoE+ power supply for easy installation
- Compatible with UniFi Controller for central management
Cons
- Requires UniFi Controller software for full functionality
- Not suitable for small home networks as it is aimed at enterprise use
Pros
- High wireless performance with dual-band technology
- Supports many simultaneous users
- Advanced security features such as WIPS and VLAN
- PoE+ power supply for easy installation
- Compatible with UniFi Controller for central management
Cons
- Requires UniFi Controller software for full functionality
- Not suitable for small home networks as it is aimed at enterprise use
Specifications
- Manufacturer: Ubiquiti
- Model: UAP-AC-SHD
- Item number: 2626195
- EAN: 4250605500108
- Device type: Wireless connection (external)
- Wi-Fi standards: IEEE 802.11a/b/g/n/ac & ac Wave 2
- Frequency bands: 2.4 GHz and 5 GHz
- Maximum data rate: 1733 Mbps
- Capacity: Over 500 simultaneous clients, 1–4 BSSIDs per radio
- Antenna: Internal, 4 antennas
- Interface: 2 x 1000Base-T (PoE+) RJ-45
- Power supply: PoE+ (17 W consumption)
- Dimensions: 22 × 22 × 4.81 cm
- Weight: 700 g
- Operating temperature: -10 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Compliance standards: IC, FCC, IEEE 802.1Q, 802.3af, 802.3at
The Ubiquiti PrismStation PS-5AC is an outdoor access point that uses AirMax ac technology to deliver fast and stable wireless connectivity on the 5 GHz band. The device is built to withstand demanding environments and is therefore suitable for installations where reliability and signal strength are important.
The replaceable antenna horn makes it possible to focus the signal in a specific direction, reducing interference from other sources and improving noise immunity. This makes it particularly suitable for areas with many wireless signals.
The device is powered via Power over Ethernet (PoE), which simplifies installation as both power and data are transmitted through the same cable. It supports a data rate of up to 500 Mbps and is equipped with a MIPS 74KC processor and 128 MB DDR2 RAM.
With its modular design, AirOS 8 operating system, and features such as QoS, TPC, and airPrism technology, the PrismStation PS-5AC gives network administrators flexibility and control over wireless connections in professional environments.
- AirMax ac technology: Provides high data rates and efficient use of the 5 GHz band.
- Outdoor design: Robust construction that withstands temperatures from -40 °C to 70 °C.
- Modular antenna: Replaceable horn antenna with 14 dBi gain for focused signal direction.
- PoE support: Power and data via a single cable for easy installation.
- Advanced network features: Supports QoS, TPC, airPrism, and TDMA for optimised performance.
Pros and cons
- High performance and stable connection on the 5 GHz band
- Robust construction for outdoor use
- Flexible antenna solution with replaceable horn
- PoE power supply for easy installation
- Advanced network features for professional use
- Requires compatible PoE injector or switch
- Directional antenna requires precise mounting for optimal coverage
Pros and cons
Pros
- High performance and stable connection on the 5 GHz band
- Robust construction for outdoor use
- Flexible antenna solution with replaceable horn
- PoE power supply for easy installation
- Advanced network features for professional use
Cons
- Requires compatible PoE injector or switch
- Directional antenna requires precise mounting for optimal coverage
Pros
- High performance and stable connection on the 5 GHz band
- Robust construction for outdoor use
- Flexible antenna solution with replaceable horn
- PoE power supply for easy installation
- Advanced network features for professional use
Cons
- Requires compatible PoE injector or switch
- Directional antenna requires precise mounting for optimal coverage
Specifications
- Manufacturer: Ubiquiti
- Model: PS-5AC
- EAN: 817882022668
- Item number: 3083836
- Device type: Wireless connection (external, outdoor)
- Processor: 1 x MIPS 74KC
- RAM: 128 MB DDR2 SDRAM
- Data communication protocol: AirMax ac
- Frequency band: 5 GHz
- Data rate: Up to 500 Mbps
- Antenna: 1 pc., 14 dBi gain
- Interface: 1 x 1000Base-T (PoE) - RJ-45
- Power supply: PoE (Power over Ethernet), 10 W consumption
- Dimensions (W x D x H): 17.4 × 18.4 × 17.4 cm
- Weight: 1.07 kg
- Operating temperature: -40 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Operating system: AirOS 8
- Compliance standards: IC, FCC
Ubiquiti UniFi AC Mesh Professional UAP-AC-M-PRO is an enterprise access point developed for outdoor use. The device supports dual-band 802.11a/b/g/n/ac and delivers up to 450 Mbps on the 2.4 GHz band and up to 1300 Mbps on the 5 GHz band.
The weather-resistant housing makes it suitable for wall or pole mounting, and the built-in omnidirectional antennas ensure wide coverage in open environments. The device can be powered via 802.3af PoE or the included Gigabit PoE adapter.
The access point is centrally managed through the UniFi Controller software or via UniFi Cloud Key, allowing unified management of multiple devices, traffic monitoring and guest network setup.
The UAP-AC-M-PRO comes with mounting brackets, PoE adapter and necessary accessories, so installation can be carried out quickly and safely.
- Dual-band performance: Supports both 2.4 GHz and 5 GHz with up to 1750 Mbps total speed.
- Outdoor design: Robust construction that withstands wind and weather.
- 3x3 MIMO technology: Provides high capacity and stable connection for multiple users.
- Central management: Controlled via UniFi Controller or UniFi Cloud Key.
- Flexible power supply: Can be powered via 802.3af PoE or the included PoE adapter.
Pros and cons
- High wireless speed and range
- Suitable for outdoor installations
- Easy integration into UniFi networks
- Supports both wall and pole mounting
- Comes with PoE adapter and mounting equipment
- Requires UniFi Controller for configuration and operation
- Not suitable for use outside the UniFi ecosystem
Pros and cons
Pros
- High wireless speed and range
- Suitable for outdoor installations
- Easy integration into UniFi networks
- Supports both wall and pole mounting
- Comes with PoE adapter and mounting equipment
Cons
- Requires UniFi Controller for configuration and operation
- Not suitable for use outside the UniFi ecosystem
Pros
- High wireless speed and range
- Suitable for outdoor installations
- Easy integration into UniFi networks
- Supports both wall and pole mounting
- Comes with PoE adapter and mounting equipment
Cons
- Requires UniFi Controller for configuration and operation
- Not suitable for use outside the UniFi ecosystem
Specifications
- Manufacturer: Ubiquiti
- Model: UAP-AC-M-PRO
- Item number: 2574978
- EAN: 0810354024764
- Device type: Wireless connection (Wi-Fi 5)
- Form factor: External, outdoor
- Data communication protocols: IEEE 802.11a/b/g/n/ac
- Frequency band: 2.4 GHz and 5 GHz
- Maximum data rate: 450 Mbps (2.4 GHz) + 1300 Mbps (5 GHz)
- Maximum range: 183 metres
- Antennas: 3 internal, 8 dBi gain
- Interface: 2 x 1000Base-T (PoE+) RJ-45
- Power supply: PoE+ (DC 44–57 V), 9 W consumption
- Dimensions (W x D x H): 18.12 × 6.02 × 34.32 cm
- Weight: 633 g
- Operating temperature: -40 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Supported operating systems: Linux, macOS, Windows 7/8/10
- Included equipment: PoE injector, mounting bracket, pole mount, screws
Product descriptions
The Ubiquiti UniFi UAP-AC-HD-5 is a set of five wireless access points developed to deliver fast and stable Wi-Fi coverage in larger network environments. Each unit supports dual-band operation with 2.4 GHz and 5 GHz frequency bands, providing flexibility and high total bandwidth.
The access point is based on the 802.11ac Wave 2 standard and can handle over 500 simultaneous clients, making it suitable for offices, educational institutions, and public areas with many users. The internal 4T4R MIMO technology contributes to efficient data transfer and a stable connection.
The devices can be centrally managed via Ubiquiti’s UniFi Controller software, which allows monitoring, configuration, and scaling of the network. The design is discreet and can be mounted on both walls and ceilings, making installation flexible.
The set comes with mounting brackets but without PoE adapters, as the devices support PoE+ power supply via network cable. The low power consumption and wide operating temperature make them suitable for continuous operation in various environments.
- Dual-band performance: Supports both 2.4 GHz (up to 800 Mbps) and 5 GHz (up to 1.733 Mbps).
- High capacity: Can handle more than 500 simultaneous clients per unit.
- Advanced Wi-Fi 5 technology: 802.11ac Wave 2 with 4T4R MIMO for efficient data transfer.
- Central management: Compatible with UniFi Controller for easy setup and management.
- Flexible mounting: Can be installed on wall or ceiling and comes with mounting brackets.
Pros and cons
- High performance and stability in environments with many users
- Supports modern Wi-Fi 5 (802.11ac Wave 2)
- Centralised management via UniFi Controller
- Flexible mounting and discreet design
- PoE+ power supply via network cable
- PoE adapters are not included and must be purchased separately
- Requires UniFi Controller for full functionality
- The product is discontinued and may be difficult to obtain
Pros and cons
Pros
- High performance and stability in environments with many users
- Supports modern Wi-Fi 5 (802.11ac Wave 2)
- Centralised management via UniFi Controller
- Flexible mounting and discreet design
- PoE+ power supply via network cable
Cons
- PoE adapters are not included and must be purchased separately
- Requires UniFi Controller for full functionality
- The product is discontinued and may be difficult to obtain
Pros
- High performance and stability in environments with many users
- Supports modern Wi-Fi 5 (802.11ac Wave 2)
- Centralised management via UniFi Controller
- Flexible mounting and discreet design
- PoE+ power supply via network cable
Cons
- PoE adapters are not included and must be purchased separately
- Requires UniFi Controller for full functionality
- The product is discontinued and may be difficult to obtain
Specifications
- Manufacturer: Ubiquiti
- Model: UAP-AC-HD-5
- EAN: 0810354026133
- Item number: 2581639
- Quantity per pack: 5 (specifications apply to a single unit)
- Wireless standard: IEEE 802.11a/b/g/n/ac, 802.11ac Wave 2
- Frequency band: 2.4 GHz and 5 GHz
- Maximum data rate: 1.733 Gbps
- Capacity: Over 500 simultaneous clients, 1–4 BSSIDs per radio
- Antenna: Internal, 4 antennas
- Interface: 2 x 1000Base-T (PoE+) RJ-45
- PoE support: PoE+ (802.3at)
- Power consumption: 17 W
- Dimensions: 22 × 22 × 4.81 cm
- Weight: 700 g
- Operating temperature: -10 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Compliance standards: IC, FCC, IEEE 802.1Q, 802.3af, 802.3at
Ubiquiti Rocket M365 is a wireless device developed for outdoor use, where stability and range are crucial. It supports the AirMax protocol, which enables efficient data transfer in both point-to-point and point-to-multipoint configurations.
The device is powered by an Atheros MIPS 24KC processor at 550 MHz and has 64 MB RAM as well as 8 MB flash memory, providing stable and fast operation. It is equipped with two RP-SMA antenna ports and a 100Base-TX RJ-45 port for network connection.
The Rocket M365 is designed to be pole-mounted and built to withstand outdoor conditions. It supports Power over Ethernet (PoE), which simplifies installation by combining power and data in one cable.
With a power consumption of 6.5 watts and a frequency band of 3.65 GHz, the device is suitable for professional wireless networks where reliable connection and flexible setup are required.
- Outdoor design: Robust construction for installation in demanding environments.
- AirMax protocol: Optimised for efficient wireless communication in professional networks.
- PoE support: Simplifies installation by combining power and data in one cable.
- Flexible mounting: Can be pole-mounted for optimal placement and signal strength.
- Low power consumption: Efficient operation with only 6.5 watts of consumption.
Pros and cons
- Robust construction for outdoor use
- Supports the AirMax protocol for high performance
- PoE makes installation easier
- Flexible mounting and compact design
- Suitable for both point-to-point and point-to-multipoint setups
- Limited to the 3.65 GHz frequency band
- Requires compatible AirMax components for full functionality
- The product is discontinued and may be difficult to obtain
Pros and cons
Pros
- Robust construction for outdoor use
- Supports the AirMax protocol for high performance
- PoE makes installation easier
- Flexible mounting and compact design
- Suitable for both point-to-point and point-to-multipoint setups
Cons
- Limited to the 3.65 GHz frequency band
- Requires compatible AirMax components for full functionality
- The product is discontinued and may be difficult to obtain
Pros
- Robust construction for outdoor use
- Supports the AirMax protocol for high performance
- PoE makes installation easier
- Flexible mounting and compact design
- Suitable for both point-to-point and point-to-multipoint setups
Cons
- Limited to the 3.65 GHz frequency band
- Requires compatible AirMax components for full functionality
- The product is discontinued and may be difficult to obtain
Specifications
- Manufacturer: Ubiquiti
- Model: ROCKETM365
- Item number: 2666928
- EAN: 4250605598143
- Device type: Wireless connection (external, outdoor)
- Processor: 1 x Atheros MIPS 24KC 550 MHz
- RAM: 64 MB SDRAM
- Flash memory: 8 MB
- Data connection protocol: AirMax
- Frequency band: 3.65 GHz
- Power Over Ethernet (PoE): Supported
- Power consumption: 6.5 watts
- Interface: 2 x antenna (RP-SMA), 1 x 100Base-TX (RJ-45)
- Features: MIMO technology, QoS, pole mounting
- Dimensions (W x D x H): 16 × 8 × 3 cm
- Weight: 500 g
- Operating system: AirOS
Ubiquiti UniFi UAP-AC-SHD is an enterprise access point designed to deliver stable and fast wireless connectivity in demanding environments. The device supports both 2.4 GHz and 5 GHz frequency bands and can achieve speeds of up to 800 Mbps and 1733 Mbps, respectively.
The access point is based on Wi-Fi 5 (802.11ac Wave 2) and uses 4T4R MIMO technology to optimise signal strength and coverage. It can handle more than 500 simultaneous clients and supports features such as VLAN, QoS, and Wi-Fi Multimedia (WMM).
The device has built-in antennas and comes with mounting brackets, making it suitable for both wall and ceiling mounting. It is powered via PoE+ and has two Gigabit Ethernet ports, providing flexibility in installation.
With features such as Wireless Intrusion Prevention System (WIPS), airView, and Airtime Fairness, the UAP-AC-SHD is designed to deliver both high performance and advanced network security in professional environments.
- Dual-band performance: Supports both 2.4 GHz and 5 GHz with up to 1733 Mbps.
- Wi-Fi 5 (802.11ac Wave 2): Provides high capacity and efficient data handling.
- Advanced security: Includes WIPS and supports multiple encryption methods.
- Flexible installation: Can be mounted on wall or ceiling and powered via PoE+.
- High capacity: Supports over 500 simultaneous clients.
Pros and cons
- High wireless performance with dual-band technology
- Supports many simultaneous users
- Advanced security features such as WIPS and VLAN
- PoE+ power supply for easy installation
- Compatible with UniFi Controller for central management
- Requires UniFi Controller software for full functionality
- Not suitable for small home networks as it is aimed at enterprise use
Pros and cons
Pros
- High wireless performance with dual-band technology
- Supports many simultaneous users
- Advanced security features such as WIPS and VLAN
- PoE+ power supply for easy installation
- Compatible with UniFi Controller for central management
Cons
- Requires UniFi Controller software for full functionality
- Not suitable for small home networks as it is aimed at enterprise use
Pros
- High wireless performance with dual-band technology
- Supports many simultaneous users
- Advanced security features such as WIPS and VLAN
- PoE+ power supply for easy installation
- Compatible with UniFi Controller for central management
Cons
- Requires UniFi Controller software for full functionality
- Not suitable for small home networks as it is aimed at enterprise use
Specifications
- Manufacturer: Ubiquiti
- Model: UAP-AC-SHD
- Item number: 2626195
- EAN: 4250605500108
- Device type: Wireless connection (external)
- Wi-Fi standards: IEEE 802.11a/b/g/n/ac & ac Wave 2
- Frequency bands: 2.4 GHz and 5 GHz
- Maximum data rate: 1733 Mbps
- Capacity: Over 500 simultaneous clients, 1–4 BSSIDs per radio
- Antenna: Internal, 4 antennas
- Interface: 2 x 1000Base-T (PoE+) RJ-45
- Power supply: PoE+ (17 W consumption)
- Dimensions: 22 × 22 × 4.81 cm
- Weight: 700 g
- Operating temperature: -10 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Compliance standards: IC, FCC, IEEE 802.1Q, 802.3af, 802.3at
The Ubiquiti PrismStation PS-5AC is an outdoor access point that uses AirMax ac technology to deliver fast and stable wireless connectivity on the 5 GHz band. The device is built to withstand demanding environments and is therefore suitable for installations where reliability and signal strength are important.
The replaceable antenna horn makes it possible to focus the signal in a specific direction, reducing interference from other sources and improving noise immunity. This makes it particularly suitable for areas with many wireless signals.
The device is powered via Power over Ethernet (PoE), which simplifies installation as both power and data are transmitted through the same cable. It supports a data rate of up to 500 Mbps and is equipped with a MIPS 74KC processor and 128 MB DDR2 RAM.
With its modular design, AirOS 8 operating system, and features such as QoS, TPC, and airPrism technology, the PrismStation PS-5AC gives network administrators flexibility and control over wireless connections in professional environments.
- AirMax ac technology: Provides high data rates and efficient use of the 5 GHz band.
- Outdoor design: Robust construction that withstands temperatures from -40 °C to 70 °C.
- Modular antenna: Replaceable horn antenna with 14 dBi gain for focused signal direction.
- PoE support: Power and data via a single cable for easy installation.
- Advanced network features: Supports QoS, TPC, airPrism, and TDMA for optimised performance.
Pros and cons
- High performance and stable connection on the 5 GHz band
- Robust construction for outdoor use
- Flexible antenna solution with replaceable horn
- PoE power supply for easy installation
- Advanced network features for professional use
- Requires compatible PoE injector or switch
- Directional antenna requires precise mounting for optimal coverage
Pros and cons
Pros
- High performance and stable connection on the 5 GHz band
- Robust construction for outdoor use
- Flexible antenna solution with replaceable horn
- PoE power supply for easy installation
- Advanced network features for professional use
Cons
- Requires compatible PoE injector or switch
- Directional antenna requires precise mounting for optimal coverage
Pros
- High performance and stable connection on the 5 GHz band
- Robust construction for outdoor use
- Flexible antenna solution with replaceable horn
- PoE power supply for easy installation
- Advanced network features for professional use
Cons
- Requires compatible PoE injector or switch
- Directional antenna requires precise mounting for optimal coverage
Specifications
- Manufacturer: Ubiquiti
- Model: PS-5AC
- EAN: 817882022668
- Item number: 3083836
- Device type: Wireless connection (external, outdoor)
- Processor: 1 x MIPS 74KC
- RAM: 128 MB DDR2 SDRAM
- Data communication protocol: AirMax ac
- Frequency band: 5 GHz
- Data rate: Up to 500 Mbps
- Antenna: 1 pc., 14 dBi gain
- Interface: 1 x 1000Base-T (PoE) - RJ-45
- Power supply: PoE (Power over Ethernet), 10 W consumption
- Dimensions (W x D x H): 17.4 × 18.4 × 17.4 cm
- Weight: 1.07 kg
- Operating temperature: -40 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Operating system: AirOS 8
- Compliance standards: IC, FCC
Ubiquiti UniFi AC Mesh Professional UAP-AC-M-PRO is an enterprise access point developed for outdoor use. The device supports dual-band 802.11a/b/g/n/ac and delivers up to 450 Mbps on the 2.4 GHz band and up to 1300 Mbps on the 5 GHz band.
The weather-resistant housing makes it suitable for wall or pole mounting, and the built-in omnidirectional antennas ensure wide coverage in open environments. The device can be powered via 802.3af PoE or the included Gigabit PoE adapter.
The access point is centrally managed through the UniFi Controller software or via UniFi Cloud Key, allowing unified management of multiple devices, traffic monitoring and guest network setup.
The UAP-AC-M-PRO comes with mounting brackets, PoE adapter and necessary accessories, so installation can be carried out quickly and safely.
- Dual-band performance: Supports both 2.4 GHz and 5 GHz with up to 1750 Mbps total speed.
- Outdoor design: Robust construction that withstands wind and weather.
- 3x3 MIMO technology: Provides high capacity and stable connection for multiple users.
- Central management: Controlled via UniFi Controller or UniFi Cloud Key.
- Flexible power supply: Can be powered via 802.3af PoE or the included PoE adapter.
Pros and cons
- High wireless speed and range
- Suitable for outdoor installations
- Easy integration into UniFi networks
- Supports both wall and pole mounting
- Comes with PoE adapter and mounting equipment
- Requires UniFi Controller for configuration and operation
- Not suitable for use outside the UniFi ecosystem
Pros and cons
Pros
- High wireless speed and range
- Suitable for outdoor installations
- Easy integration into UniFi networks
- Supports both wall and pole mounting
- Comes with PoE adapter and mounting equipment
Cons
- Requires UniFi Controller for configuration and operation
- Not suitable for use outside the UniFi ecosystem
Pros
- High wireless speed and range
- Suitable for outdoor installations
- Easy integration into UniFi networks
- Supports both wall and pole mounting
- Comes with PoE adapter and mounting equipment
Cons
- Requires UniFi Controller for configuration and operation
- Not suitable for use outside the UniFi ecosystem
Specifications
- Manufacturer: Ubiquiti
- Model: UAP-AC-M-PRO
- Item number: 2574978
- EAN: 0810354024764
- Device type: Wireless connection (Wi-Fi 5)
- Form factor: External, outdoor
- Data communication protocols: IEEE 802.11a/b/g/n/ac
- Frequency band: 2.4 GHz and 5 GHz
- Maximum data rate: 450 Mbps (2.4 GHz) + 1300 Mbps (5 GHz)
- Maximum range: 183 metres
- Antennas: 3 internal, 8 dBi gain
- Interface: 2 x 1000Base-T (PoE+) RJ-45
- Power supply: PoE+ (DC 44–57 V), 9 W consumption
- Dimensions (W x D x H): 18.12 × 6.02 × 34.32 cm
- Weight: 633 g
- Operating temperature: -40 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Supported operating systems: Linux, macOS, Windows 7/8/10
- Included equipment: PoE injector, mounting bracket, pole mount, screws
Different types of access points
Access points come in several variants, each suited to different needs and environments.
1. Standalone access points
These function as independent devices connected to your router via cable. They are ideal for homes or small offices where you simply want to extend coverage in a specific area. They typically require manual setup but offer great flexibility.
2. Mesh access points
Mesh systems consist of multiple devices that work together to create a unified wireless network. They are easy to set up and expand, providing seamless coverage throughout the home without having to switch between networks. This type is popular in larger homes.
3. Outdoor access points
Outdoor models are designed to withstand weather conditions and are often used to provide Wi-Fi in gardens, on terraces, or in courtyards. They typically have higher transmission power and a robust construction.
4. Enterprise access points
These models are aimed at businesses and larger installations. They can handle many simultaneous users, have advanced security features, and can be managed centrally via software. They are often more expensive but provide maximum control and stability.
Different brands of access points
The market for access points is broad, and several manufacturers specialise in different segments.
Ubiquiti
Ubiquiti is known for its UniFi products, which combine high performance with professional management. They are used in both private homes and businesses and offer a wide range of models for different needs.
TP-Link
TP-Link offers both affordable and advanced access points. The Omada series is aimed at those who want central management, while the Deco series is popular among private users who want a user-friendly mesh network.
Netgear
Netgear has a wide range, from simple access points to professional solutions. The brand is known for stability, good coverage, and intuitive management tools.
ASUS
ASUS produces access points and routers focusing on high speed and gaming optimisation. Many models support the latest Wi-Fi standards and have advanced features for home users with high demands.
D-Link
D-Link offers both compact and powerful access points for home and office. The brand emphasises easy setup and solid performance at an affordable price.
Frequently asked questions
What is the difference between a router and an access point?
A router distributes the internet connection to multiple devices, while an access point extends the wireless network. You can use an access point to improve coverage without replacing your router.
How many access points do I need?
It depends on the size of your home and the materials of the walls. One access point can cover a smaller home, while larger homes or offices often require several devices placed strategically for optimal coverage.
Can I use an access point with my existing router?
Yes, most access points are compatible with standard routers. Simply connect the access point via cable and configure it to extend your existing network.
Does an access point need to be wired?
For the best stability, a wired connection between the router and access point is recommended. However, some models support wireless backhaul, where they communicate wirelessly with the router, but this may slightly reduce speed.
Is it difficult to install an access point?
Most modern access points are easy to install via an app or web interface. Many manufacturers offer step-by-step guides, and mesh systems are often configured automatically.
Læs også:
